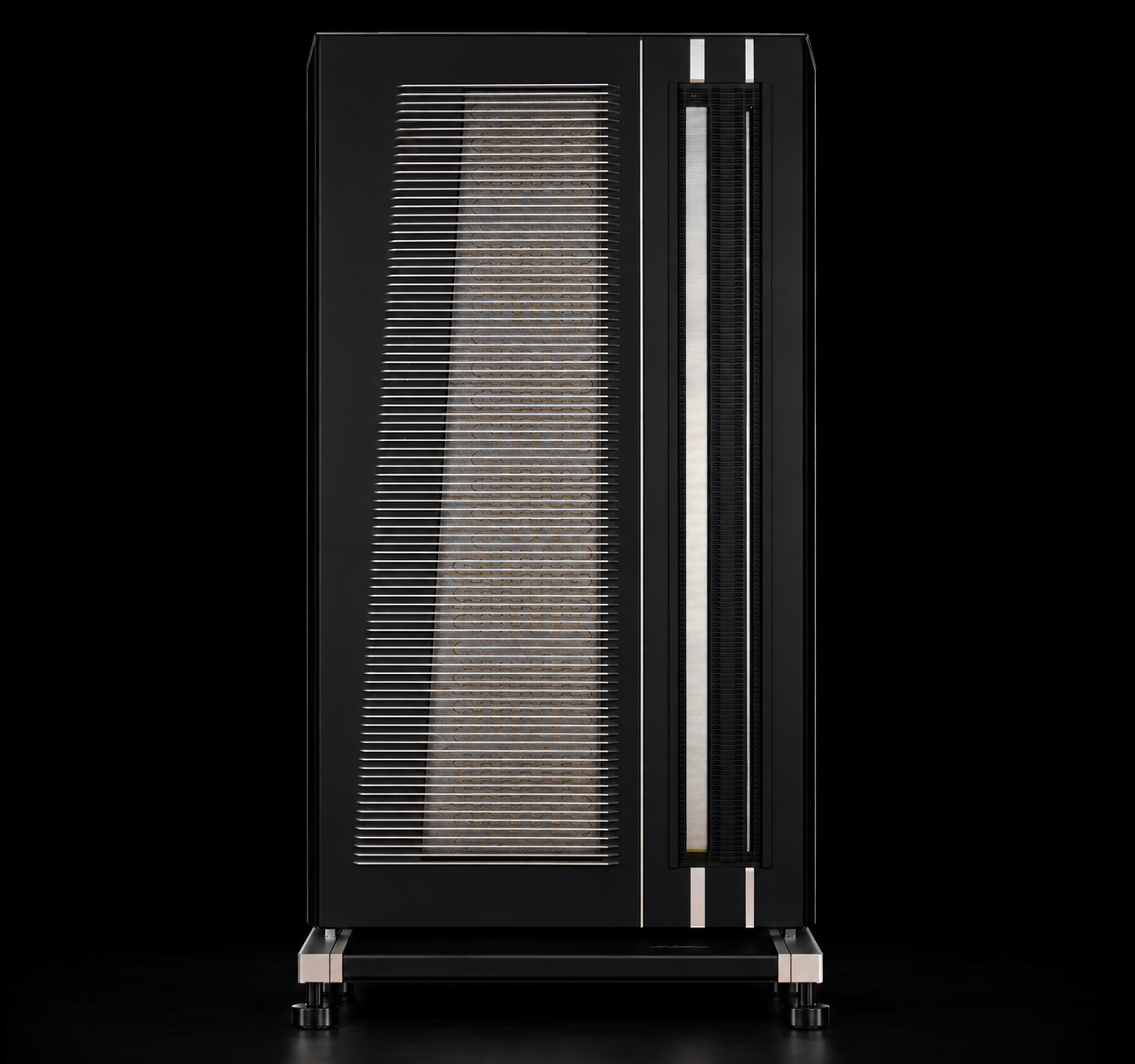

AUDITORIUM MK2

AUDITORIUM MK2

One loudspeaker. Every note. All of the music.

The Clarisys Auditorium is a tour de force in full-range ribbon loudspeaker design — a single-unit system that embodies the full scope of our technological achievements. It delivers uncompromising dynamics, scale, and realism all from a single, elegant structure. At its heart are dual bipole pure aluminium midrange ribbons and quad bipole aluminium treble ribbons, mounted back-to-back in perfect phase. Each ribbon section is driven by its own dedicated transformer, ensuring total independence and absolute resolution across the most critical musical frequencies. Bass is handled by a dedicated low-frequency ribbon system delivering extension flat to 20 Hz with the speed and slam only planar bass can achieve. No cones. No boxes. The entire system is housed in a single 100% CNC-machined aluminium enclosure.

KEY FEATURES

  • 3-way design: bass ribbon, dual bipole midrange ribbons, quad bipole aluminium treble ribbons
  • Dedicated transformer per ribbon section (midrange & treble)
  • Dedicated low-frequency ribbon system flat to 20Hz — no cones, no boxes
  • Monolithic 100% CNC-machined aluminium enclosure
  • Wall-of-sound impact with pinpoint coherence
  • WBT binding posts throughout

SPECIFICATIONS

driver type
3-way — bass ribbon (up to 280Hz), dual bipole midrange ribbons (280Hz–6kHz), quad bipole aluminium treble ribbons (6kHz+)
frequency response
18Hz – 25kHz+
sensitivity
92dB (neodymium)
impedance
6Ω nominal
crossover
3-way passive external — 6dB slopes; 12dB protection on treble ribbons. Dedicated transformer per ribbon section (midrange & treble). Duelund (Denmark) capacitors & inductors throughout
dimensions
222 × 110 × 46 cm (H×W×D)*
weight
~148 kg each*

FLIGHT CASE / SHIPPING

dimensions232 × 115 × 72 cm per case
weight295 kg net / 590 kg gross (2 cases)
SHIPPING & SETUP GUIDE

* Dimensions and weight are indicative. Small deviations possible.
